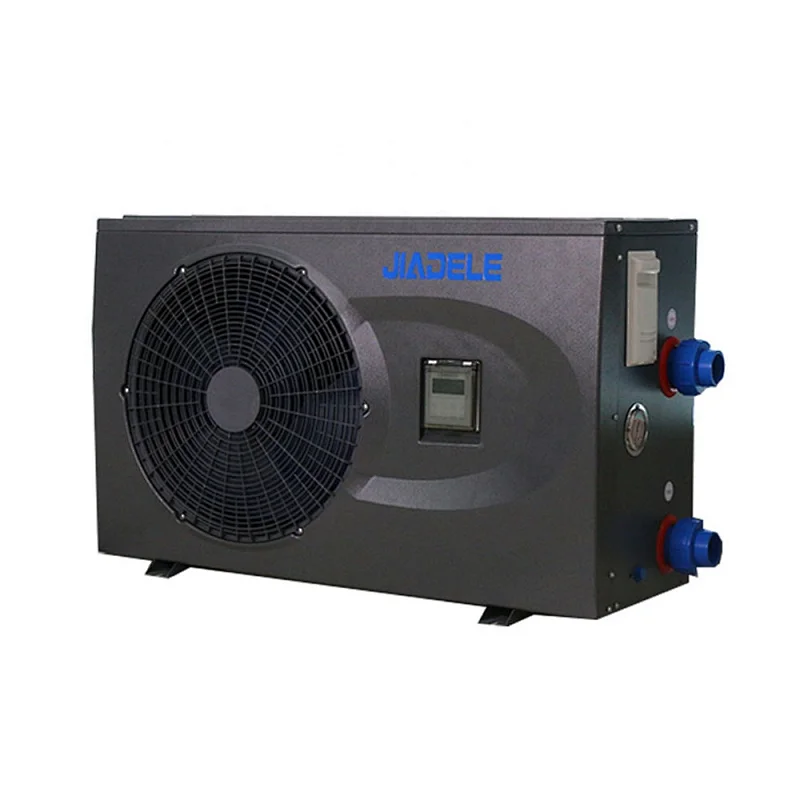

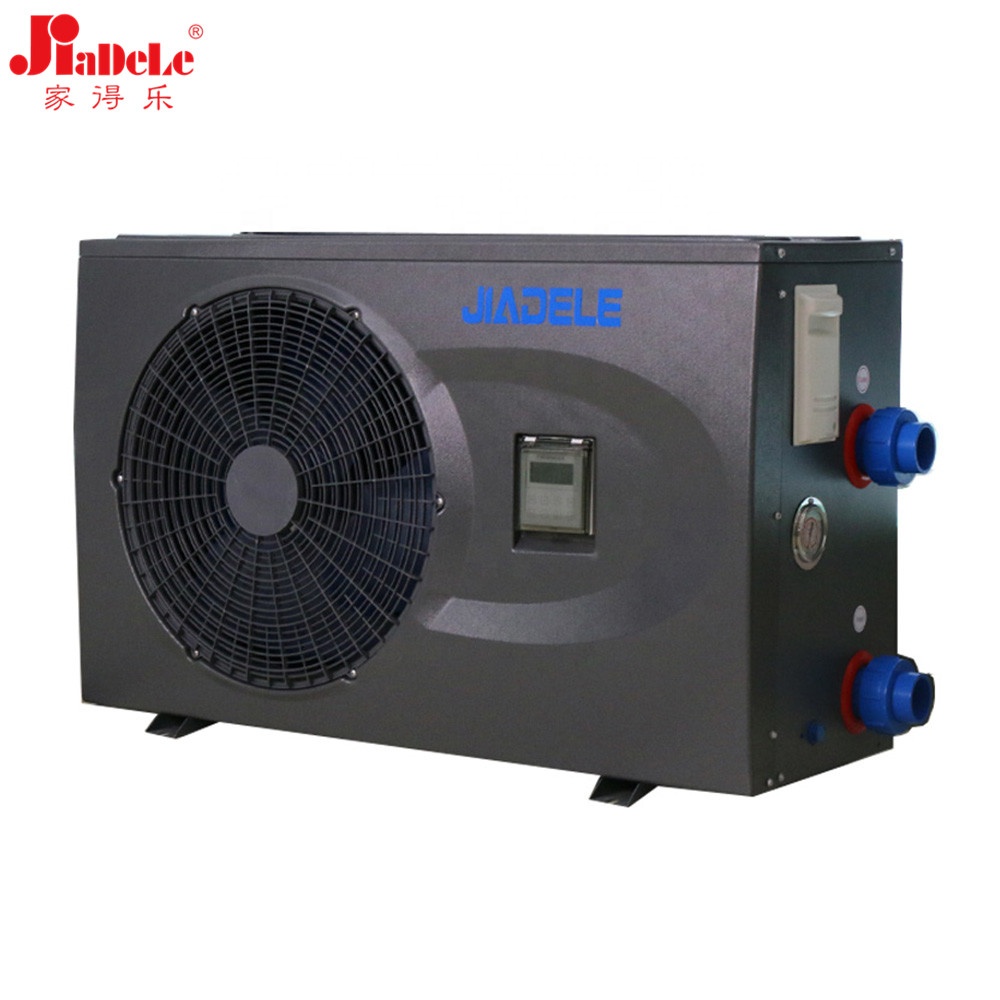

JIADELE High Quality 5/8/14/16KW Water Heater For Swimming Pool Heat Pump Heater , pool heater 140000 btu

JIADELE High Quality 5/8/14/16KW Water Heater For Swimming Pool Heat Pump Heater , pool heater 140000 btu

Model NO.: JDL-HP12-58
Price:: USD 450.00-680.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 10000.0 piece / Month
Country of Origin: shanghai

Quantity:

Product Description

Refrigerant:R32
Function:Pool Water Heating
Heating capacity:5.7/8.2/12.2/15.5/21KW
Suitable size of swimming pool:10-20/20-30/30-50/55-70/80-100m3
Heat exchanger:Titanium Heat Exchanger
Power supply:220-240V/50Hz
Compressor:Rotary/ Scroll Compressor
Product name:bomba de calor piscinas/Pool heater
After-sales3 Year
Application:Household Swimming Pool
Power Source:Air Source
Type:Air Source Heat Pump
Installation:Freestanding
Housing Material:Stainless Steel
Use:Swimming Pool Heater
Certification:CB/CE/SAA/ROHS/3C/ISO9001
Place of Origin:CN;ZHEJIANG
Storage / Tankless:Instant
Brand Name:JIADELE
Model Number:JDLKRY-06AE1

JIADELE High Quality 5/8/14/16KW Water Heater For Swimming Pool Heat Pump Heater , pool heater 140000 btu

Product Description

Description:

1. Casing: Stainless Steel.

2. Adopt Titanium heat exchanger, effectively erosion proof and durable. ensure working in high Efficiency and longer life.

3. Multi Rows evaporator, hydrophilic aluminum fins which could reducing drag, and the surface not easy to bear water.

4. Intelligent controller and adjustment by quick-mind microprocessor.

5. Automatic defrosting function (with four way valve inside).

6. Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection,water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.

7. Save energy, saving more energy by 75% comparing with ordinary electric water heater.

PARAMETRS
Model	JDLKRY-5FE1	JDLKRY-8FE1	JDLKRY-13FE1	JDLKRY-16FE1	JDLKRY-20FE1
Power Supply	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz
Ambient dry bulb temperature :27℃, wet bulb temperature: 24℃, inlet water temperature: 26℃;
Heating capacity	5400W	8300W	14370W	18000W	22300W
Input Power	772W	1120W	2000W	2850W	3150W
COP	7	7.4	7.2	6.3	7.1
Ambient dry bulb temperature :24℃, wet bulb temperature: 19℃, inlet water temperature: 26℃, outlet water temperature: 28℃;
Heating capacity	4750W	7400W	12600W	16000W	28000W
Input Power	820W	1160W	2030W	2800W	3150W
COP	5.8	6.4	6.2	5.7	6.35
Ambient dry bulb temperature :15℃, wet bulb temperature: 12℃, inlet water temperature: 26℃;
Heating capacity	3750W	6200W	10500W	13200W	16700W
Input Power	833W	1200W	2040W	2740W	3130W
COP	4.5	5.16	5.15	4.8	5.33
Ambient dry bulb temperature :35℃, wet bulb temperature: 28℃, inlet water temperature: 30℃;
Refrigerating capacity	3220W	5200W	7650W	8100W	12700W
Input power of cooling	1066W	1600W	2730W	3800W	4060W
EER	3	3.25	2.8	2.13	3.1
Maximum power current	6.8A	9.3A	16A	22A	9.2A
Freezing medium	R32				R410A
Noise	47	51	54	54	56
Circulating pipe diameter	50	50	50	50	50
Water recirculation rate	2m³/h	3.2m³/h	5.5m³/h	6.9m³/h	8.6m³/h
Water side pressure loss	3KPA	6KPA	8KPA	10KPA	15KPA
Suitable pool size	10~20	20~30	30~50	55~70	60~80
Electric shock proof protection grade	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I
IP Grade	IPX4	IPX4	IPX4	IPX4	IPX4
Quality	39KG	49KG	68KG	70KG	150KG

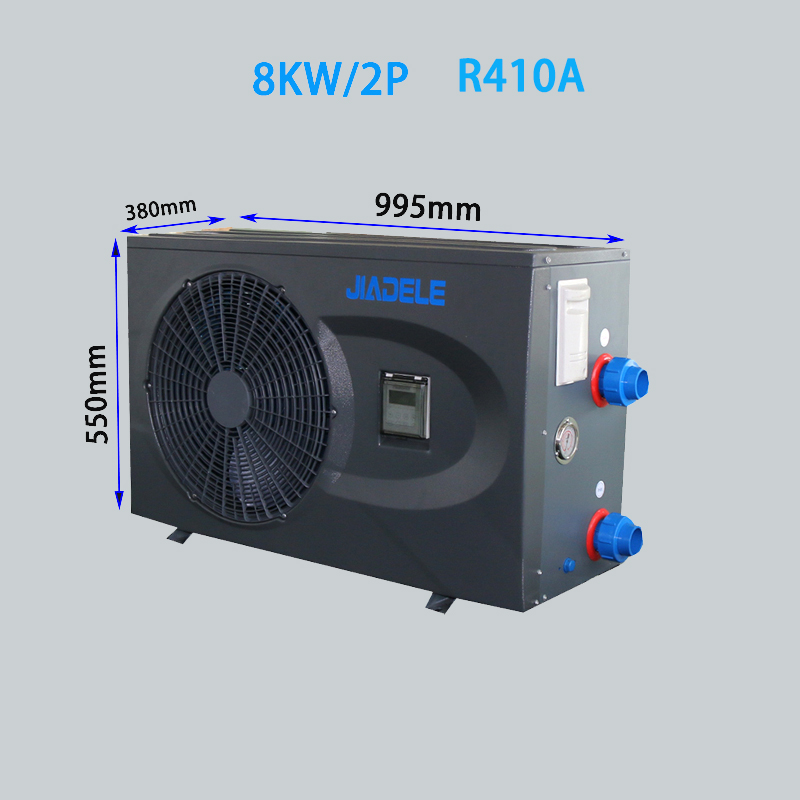

Dimensions	995380570mm	995380570mm	995380570mm	995380570mm	7507501000mm
Package size	1075×400×720	1075×400×720	1150485720	11504851750	1145×535×910
Compressor type	Rotary	Rotary	Rotary/Scroll	Rotary/Scroll	Scroll
Compressor quantity	1	1	1	1	1
Number of evaporators	1	1	1	1	1
Throttle type	EEV	EEV	EEV	EEV	EEV
Motor type/quantity	AC motor/1	AC motor/1	AC motor/1	AC motor/1	AC motor/1
Motor input power	50	70	120	120*2	120*2
Air Outler	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
Air side heat exchanger	Fin-coil	Fin-coil	Fin-coil	Fin-coil	Fin-coil
Water side heat exchanger	Titanium	Titanium	Titanium	Titanium	Titanium
