- Compressor:Split heat pump water heater
- Water tank capacity:180L/200L/260L/300L
- The number of suitable:2-3/3-4/4-5/5-6
- Nominal heating capacity:4850 W/6800W
- Water output:103L/h OR 146l/h
- Work environment:-7-43 ℃
- Power supply:220V-240V/1HP/50HZ
- Noise:<58dB(A)
- Dimension:"76*26*54cm/ 52*52*144cm"(Main engine /water tank)
- Weight:43kgs(Main engine)
- Color:As pictures
- After-sales Service Provided:Onsite Installation
- Warranty:3 Year
- Application:Household
- Power Source:Air Source+Electric
- Installation:Freestanding
- Housing Material:Stainless Steel
- Use:Bathroom
- Certification:CB/CB/SAA/ROHS/ISO9001/3C
- Model Number:JDLKF110/180F
- Brand Name:JIADELE
- Place of Origin:CN;ZHEJIANG
- Storage / Tankless:Instant

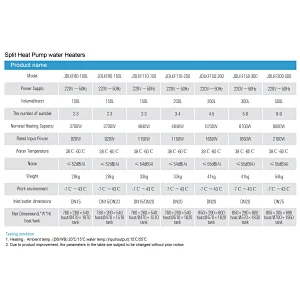

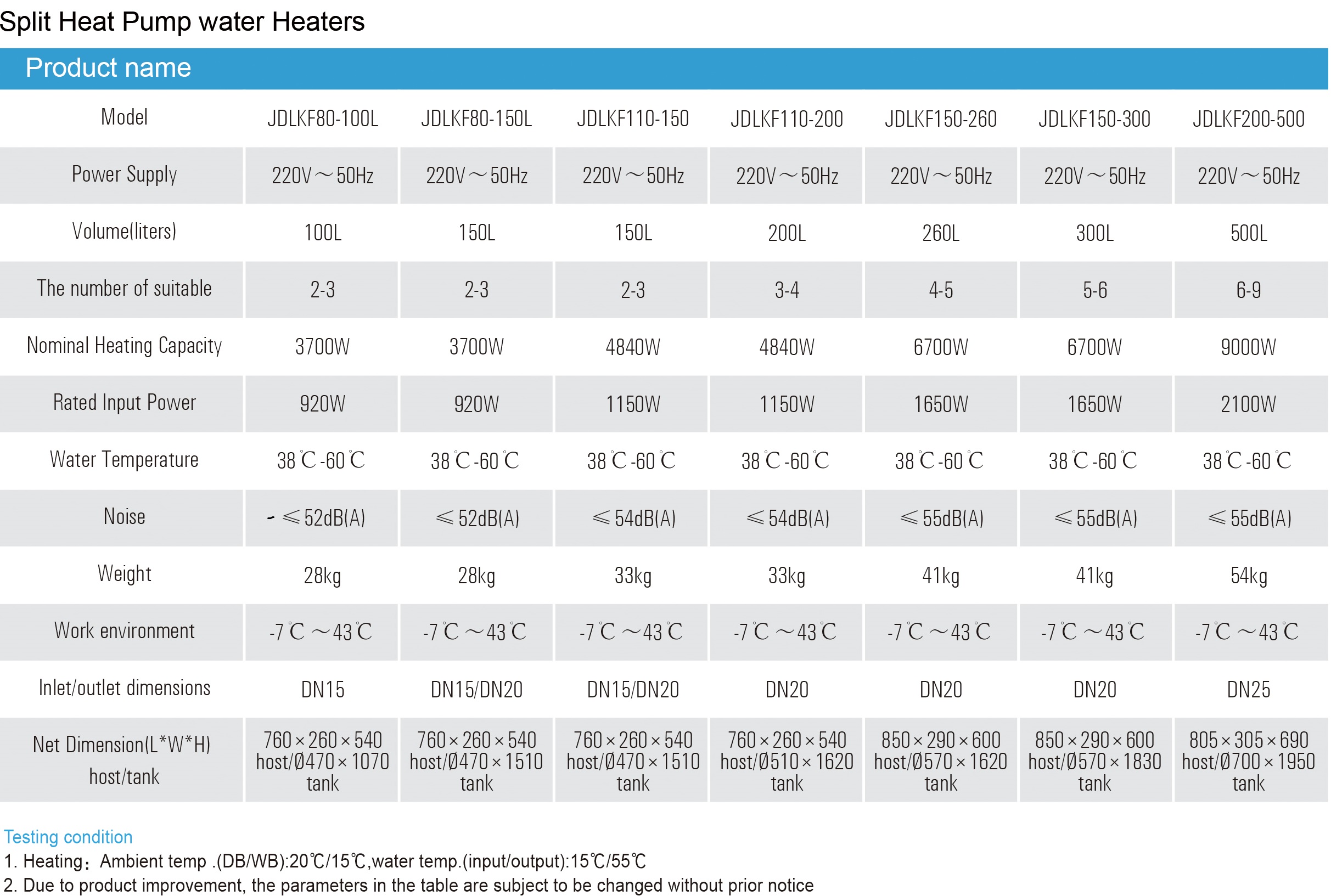

Parameters LIst | |||||||
Factory Model | JDLKF80 -100L | JDLKF80 -150L | JDLKF110 -100L | JDLKF110 -150L | JDLKF150 -260L | JDLKF150 -300L | JDLKF200 -500L |
Volume (liters) | 100L | 150L | 150L | 200L | 260L | 300L | 500L |
The number of suitable | 2-3 | 2-3 | 2-3 | 3-4 | 4-5 | 5-6 | 7-8 |
Noise dB(A) | 52 | 52 | 54 | 54 | 58 | 58 | 58 |
Weight(kg) | 28 | 28 | 33 | 33 | 41 | 41 | 54 |
Work environment | -7-43 ℃ | -7-43 ℃ | -7-43 ℃ | -7-43 ℃ | -7-43 ℃ | -7-43 ℃ | -7-43 ℃ |
Net dimensions (L*W*H)mm | 760*260*540 | 760*260*540 | 760*260*540 | 760*260*540 | 850*290*600 | 850*290*600 | 805*305*690 |
Inletoutlet dismendions | DN15 | DN15/DN20 | DN15/DN20 | DN20 | DN20 | DN20 | DN25 |
