JIADELE Air to Water Heat Pump EVI Split System Water Heater

• Compressor:Split heat pump water heater
• Heating Capacity :10.5/12/16.8/31.5/69/138 kw
• Cooling Capacity :14/16/20/49.4/98.8/197.5 kw
• Power Input (heating):4.15/4.9/5.1/9.5/20.9/42.2 kw
• Power Input (cooling):3.5/4.6/5.1/9.5/20.9/42.2 kw
• Power supply:220-240V/1N/50HZ OR 380V/3N/50HZ
• Refrigerant：R410A
• Weight:160/170/210/360/910/1540kg
• Color:as pictures
• After-sales Service Provided:Onsite Installation
• Warranty:3n:Household
• Power Source:Air Source+Electric
• Installation:Freestanding
• Housing Material:Stainless Steel
• Use:Bathroom
• Certification:CB/CB/SAA/ROHS/ISO9001/3C
• Place of Origin:CN;ZHEjiang
• Storage / Tankless:Instant
• Brand Name:JIADELE
• Model Number:JDLFR-ADBPE

Product Description

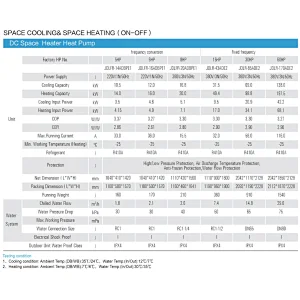

Parameters LIst
Factory Model	JDLFR-14 ADBPE1	JDLFR-16 ADBPE1	JDLFR-20 ADBPE1	JDLFR-43 ADBPE2	JDLFR-85 ADBPE2	JDLFR-170 ADBPE2
Power supply	220-240V/ 1N/50HZ	220-240V/ 1N/50HZ	220-240V/ 1N/50HZ	380V/3N /50HZ	380V/3N /50HZ	380V/3N /50HZ
COP	3.37	3.27	3.30	3.30	3.30	3.27
EEP	2.86	2.61	2.80	2.90	2.90	2.90
Electrical Shock proof	I	I	I	I	I	I
Min.Work environment	-25 ℃	-25 ℃	-25℃	-25 ℃	-25 ℃	-25 ℃
Max.running current	33	36	15.5	32	58	116
Outdoor unit water proof class	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4

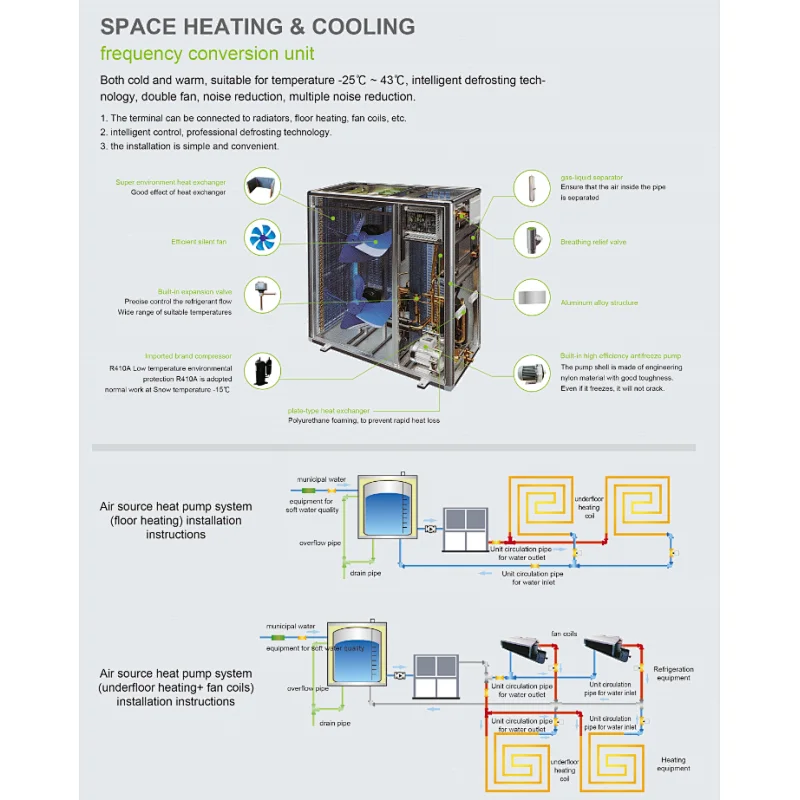

Model 1.SPACE HEATING AND COOLING&Model 2.HEATING AND HOT WATER

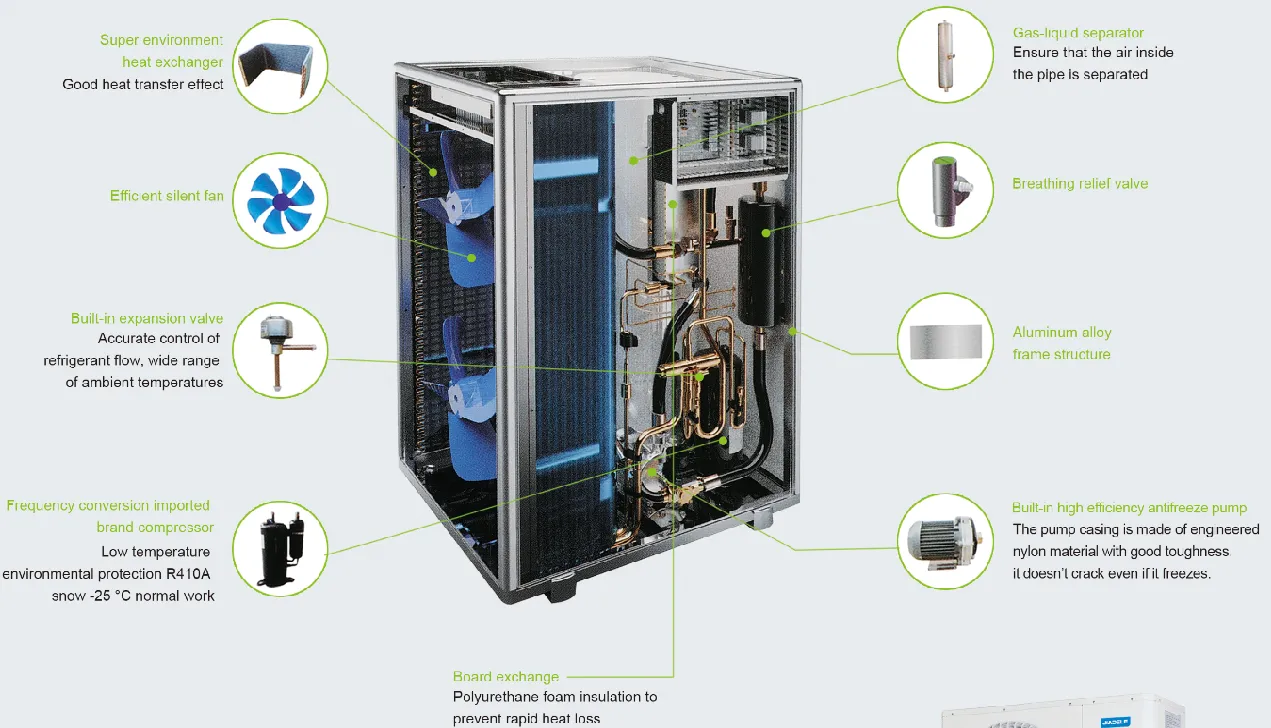

Frequency conversion unit Both cold and warm, suitable for temperature -25C -43C, intelligent defrosting tech- nology, double fan, noise reduction, multiple noise reduction.

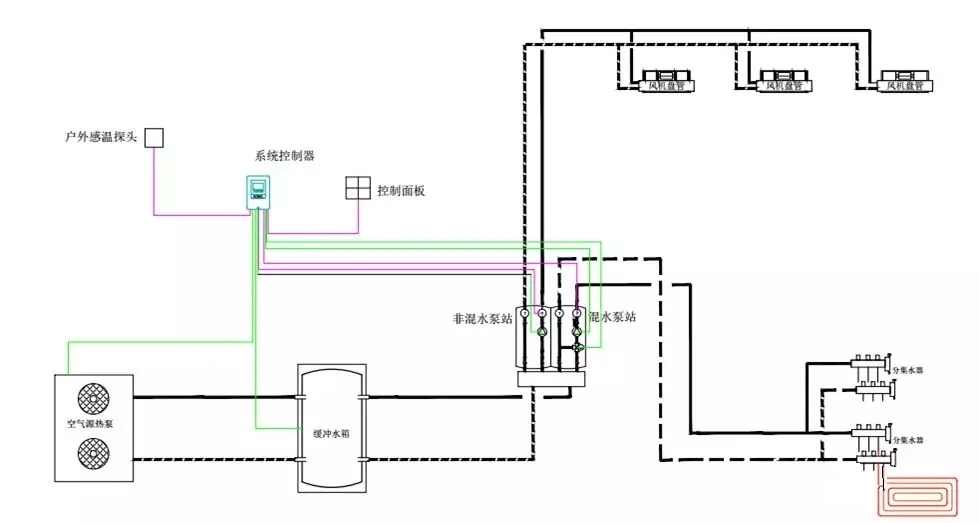

1. The terminal can be connected to radiators, fioor heating, fan coils, etc

2. intelligent control, professional defrosting technology
3. the installation is simple and convenient
                   Model 2.HEATING AND HOT WATER

                Model 1.SPACE HEATING AND COOLING

                               Please choose the model that suits you!

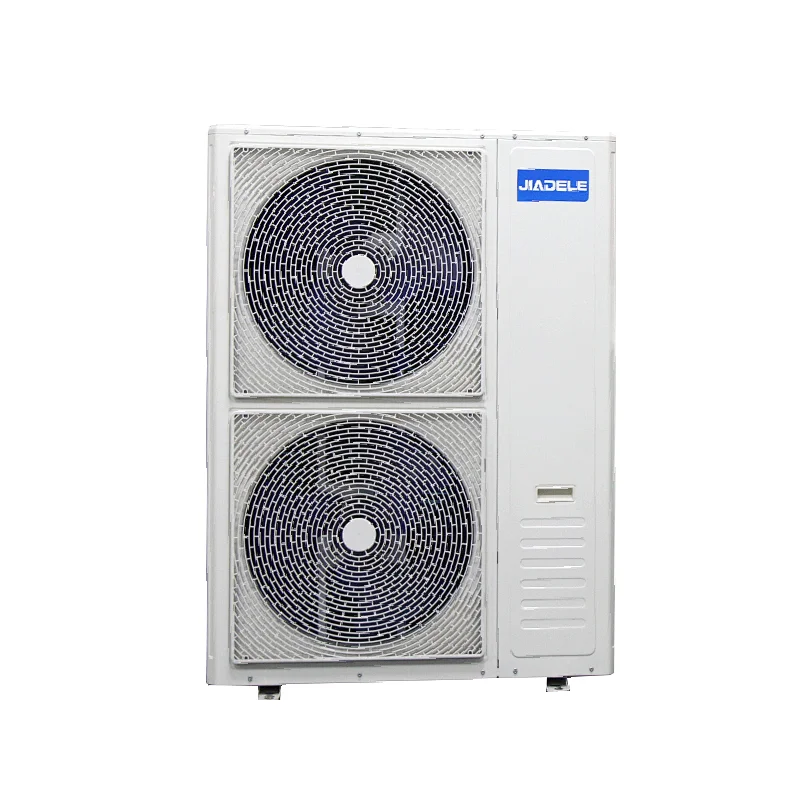

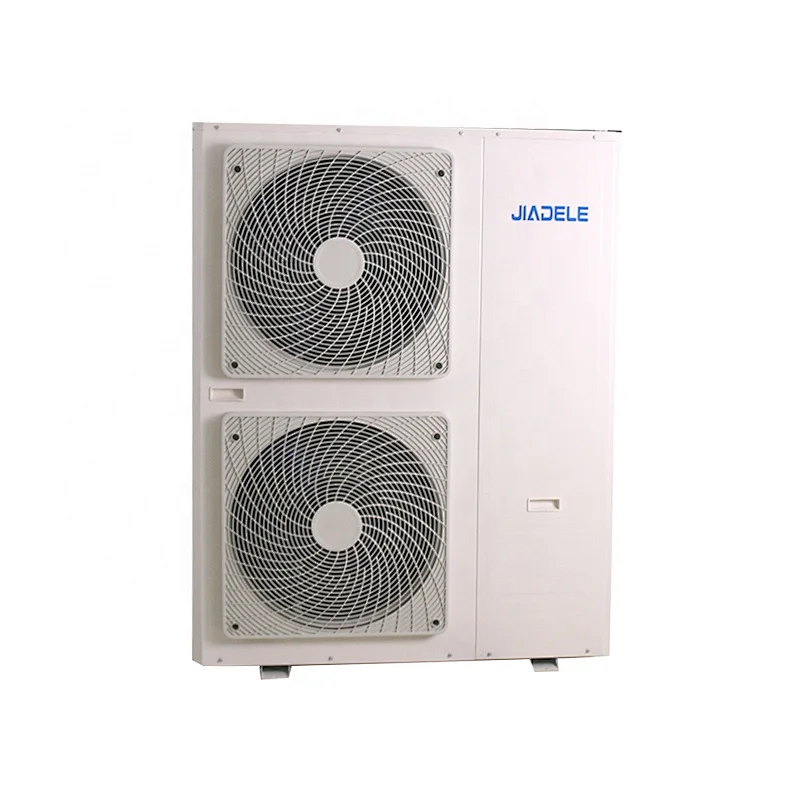

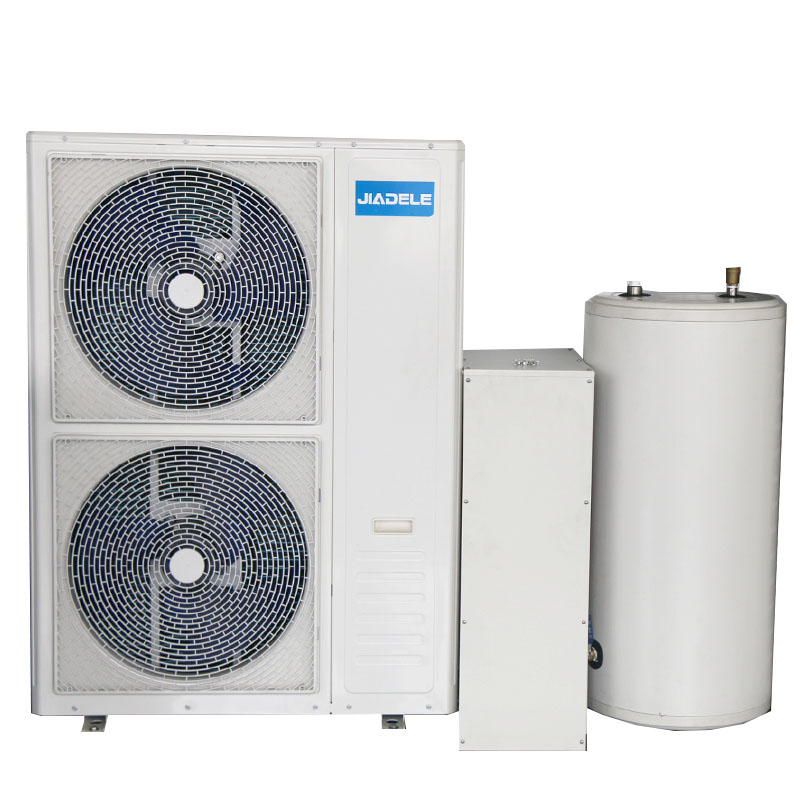

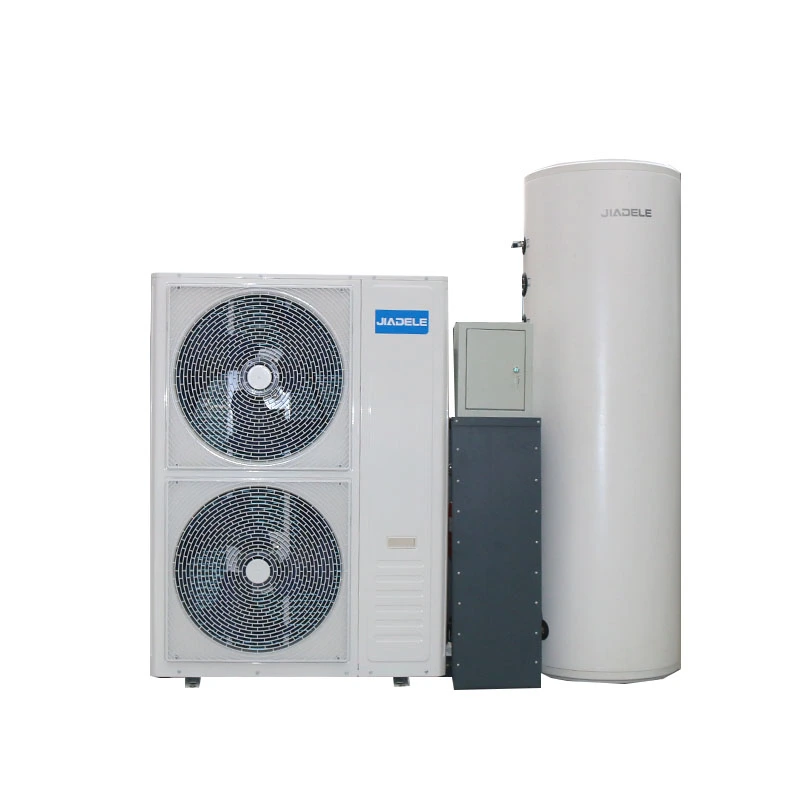

This air to water heat pump comes with an indoor tank and an outdoor compressor, split design makes it easier to stall around your home and safer for use without the risk of electricity leakage. Compact dimension of this air to water heat pump allows you to deliver and store it more effortlessly, you can enjoy all year comfort with this innovative invention.

Our air to water heat pump provides economical all-season comfort to cool your home in the hottest summer days while bringing cost-effective electric heat all winter long.  Adopting a highly advanced heat pump technology, it meets all-year-around needs of sufficient hot water with lower electricity bills, saving much of your money on energy cost. In addition, it helps reduce CO2 emission that is released into the atmosphere when burning natural resources to generate heat as it is the energy transfer process that supplies heat to our homes. Upgraded refrigerant absorbs thermal energy from outdoor to convert it to heat energy for the water tank, providing consistent refrigeration circle all year to provide heat.
